État de disponibilité: | |
---|---|
Quantité: | |
RF-UV-3W 5W 10W
RAY FINE TECH

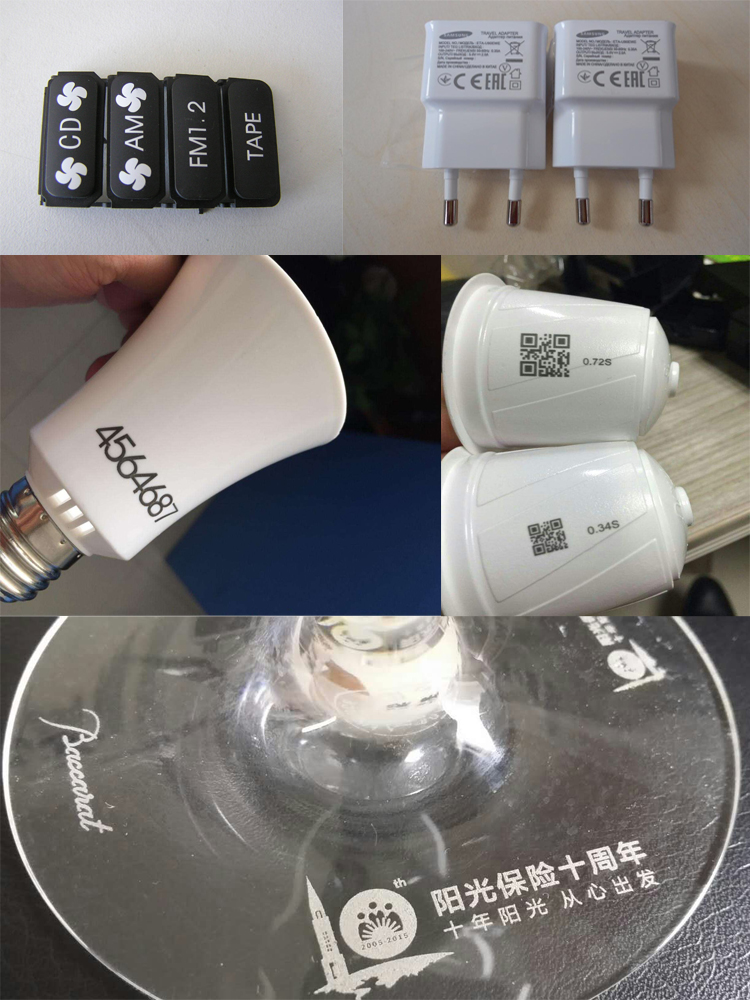

1.aviation cable ties and other plastic parts
2. gold plating, silver and other surface marking
3. UV oily plastic material surface marking, eg: Samsung panel, melamine
4. Marquage de la surface des matériaux sans halogène, par exemple: Chargers pour les produits iPhone, les câbles de connexion et autres produits périphériques
5. Identification des nécessités quotidiennes (emballage des boissons, emballage alimentaire)
6.cable and wire marking
7. a variety of pipe surface identification
8. flexible materials and carbon fiber cutting (material thickness is only 200um)
1.aviation cable ties and other plastic parts
2. gold plating, silver and other surface marking
3. UV oily plastic material surface marking, eg: Samsung panel, melamine
4. Marquage de la surface des matériaux sans halogène, par exemple: Chargers pour les produits iPhone, les câbles de connexion et autres produits périphériques
5. Identification des nécessités quotidiennes (emballage des boissons, emballage alimentaire)
6.cable and wire marking
7. a variety of pipe surface identification
8. flexible materials and carbon fiber cutting (material thickness is only 200um)
1. Ultraviolet lasers have the benefit of other lasers that limit thermal stress. This is because most UV laser
systems operate at low power.
2. By using a process sometimes referred to as \"cold ablation,\" the UV laser beam produces a reduced heat
affected zone that minimizes the effects of edge processing, carbonization, and other thermal stresses,
while using higher power. Lasers usually have these negative effects.
3. The size of the ultraviolet laser beam can reach 10-20μm
1. Ultraviolet lasers have the benefit of other lasers that limit thermal stress. This is because most UV laser
systems operate at low power.
2. By using a process sometimes referred to as \"cold ablation,\" the UV laser beam produces a reduced heat
affected zone that minimizes the effects of edge processing, carbonization, and other thermal stresses,
while using higher power. Lasers usually have these negative effects.
3. The size of the ultraviolet laser beam can reach 10-20μm
Modèle | RF-F-3W | RF-F-5W | RF-F-8W | RF-F-10W |
Laser Wavelength | 355 nm | |||
Marking speed | 8m/s | |||
Durée de pouls | <20 ns | <16ns | ||
Qualité du faisceau laser M2 | <1.2 | |||
La fréquence | 10-200KHZ | |||
Zone de marquage | 110x110mm(optional) | |||
Mini. character size | 0.1mm | |||
Repetition Accuracy | <8μrad | |||
Programme de contrôle | JCZ | |||
Supply voltage: | AC110V 60HZ or AC220V 50HZ | |||
Type de refroidissement | Eau froide |
Modèle | RF-F-3W | RF-F-5W | RF-F-8W | RF-F-10W |
Laser Wavelength | 355 nm | |||
Marking speed | 8m/s | |||
Durée de pouls | <20 ns | <16ns | ||
Qualité du faisceau laser M2 | <1.2 | |||
La fréquence | 10-200KHZ | |||
Zone de marquage | 110x110mm(optional) | |||
Mini. character size | 0.1mm | |||
Repetition Accuracy | <8μrad | |||
Programme de contrôle | JCZ | |||
Supply voltage: | AC110V 60HZ or AC220V 50HZ | |||
Type de refroidissement | Eau froide |
